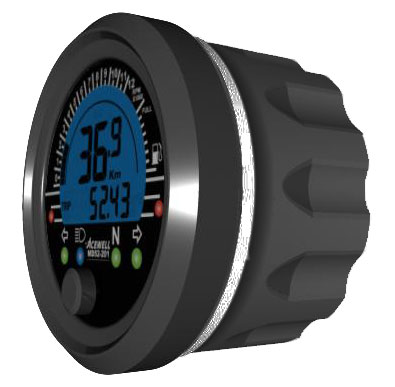

Compact 52mm round Acewell instrument showing speed, RPM and time - a neat fit for small bikes, monkey bikes and quads.
Features
Multifunctional LCD ATV / Motorcycle computer includes analogue and digital tachometer, speedometer and clock. Switchable backlight 4 LED warning lamps for indicators, main beam, oil pressure and neutral LCD has 2 digital rows and analogue RPM bar-graphic display with blue LED backlight Odometer and total riding timer cannot be reset and are permanently stored in memory Displays clock when in standby mode Can be easily switched between MPH and KMH Adjustable wheel circumference from 1 to 3999mm Fuel gauge can work with 100/250/510 ohm senders (full or empty low resistance) or can be switched off if not required Fully waterproof Includes bracket, speed sensor and wiring harness Vibration (8G) and mechanical shock (10G) tested EMI / EMS tested, E-Mark certificate Dimensions: 52mm x 40mm COMPATIBLE WITH GEARBOX SPEED SENSORS
Features
features
Digial Speed Readout (SPD)
Maximum Speed Display (MAX SPD)
Average Speed Display (AVG)
Odometer (ODO)
Trip Meter
Clock
Warning Lamps
Digital Rev Counter
Bar Chart Rev Counter
Voltmeter
Bar Chart Fuel Gauge
Backlight
Waterproof Computer
Plastic Case
CNC Case
EMI/EMS Tested CE And E-Marked
Vibration (8G) And Mechanical Shock (100G) Tested.
Specifications

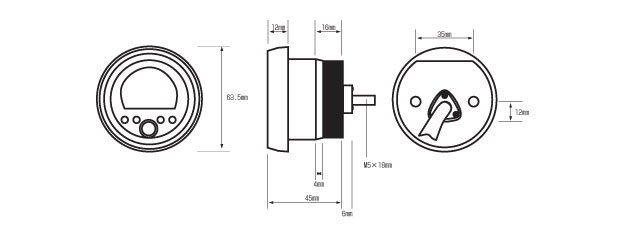

specifications Features Specification Model Number MD52-253 Digial Speed Readout (SPD) 0 - 248MPH / 400Km/h Maximum Speed Display (MAX SPD) 0 - 248MPH / 400Km/h Average Speed Display (AVG) 0 - 248MPH / 400Km/h Max Speed Sensor Input Frequency 7KHz (reed sensor / hall sensor / cable drive / electronic gearbox speed sensors) Odometer (ODO) 0-999,999 km / 0-624,999 miles Trip Meter 2 trips, 0-999 km / 0-625 miles Clock 12 / 24 hour clock, also displayed when ignition is off Warning Lamps 4 Digital Rev Counter 0-20,000 RPM Bar Chart Rev Counter 0-12,000 RPM Operating Power 12v (DC, Negative earth) Voltmeter 8v-18v Bar Chart Fuel Gauge Input Resistance off or +/- 100 / 250 / 510 ohm Backlight Backlight and power switched independently Connector Plugs 110 series Plastic Case Dimensions 58mm diameter x 45mm (fits through 52mm diameter hole in dash) CNC Case Dimensions 58mm diameter x 45mm (fits through 52mm diameter hole in dash) Case black plastic / chromed CNC upper ring and optional black plastic sleeve Power On ignition key Compatible Wheel Size 1-3999mm

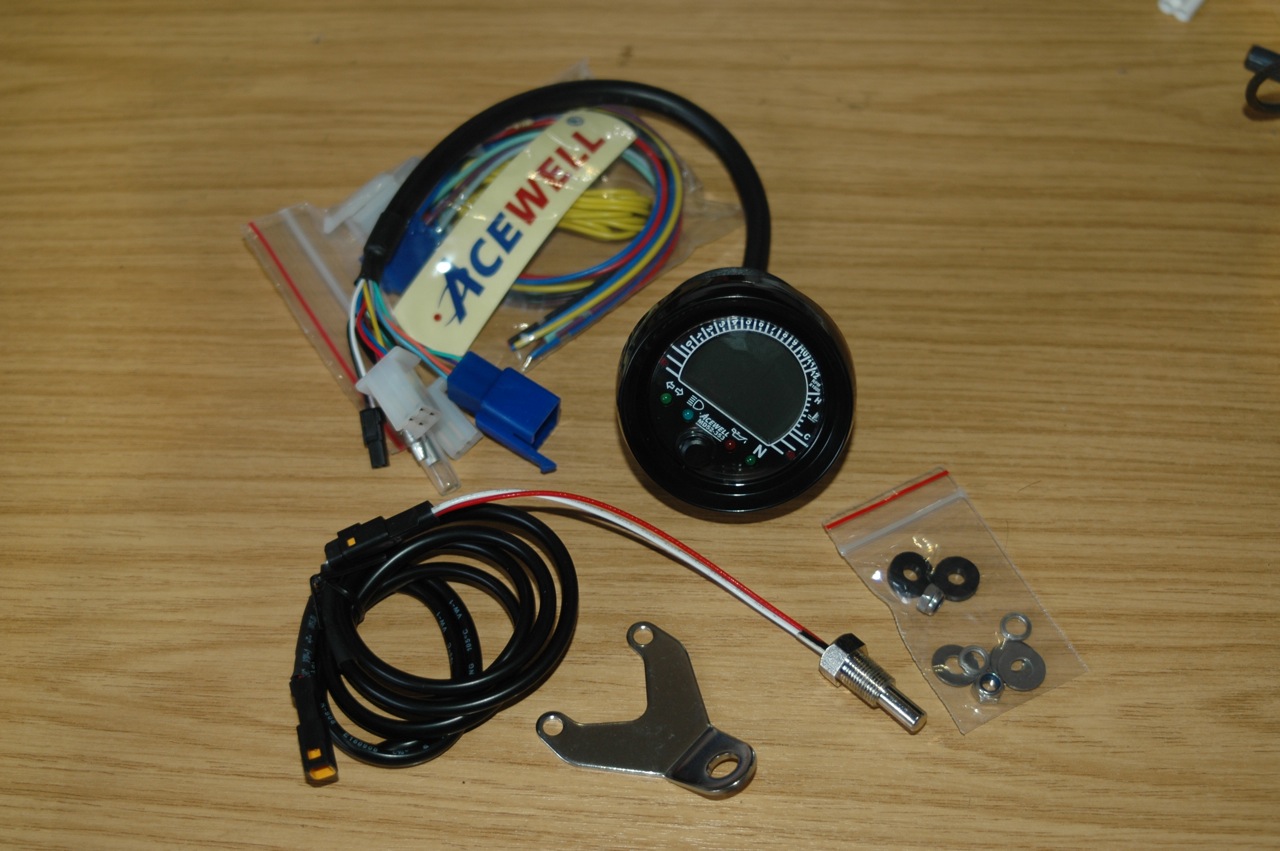

Included in the kit
included in the kit Head unit
Mounting Bracket: Mini stainless steel bracket
Mounting Kit: stainless steel nuts, washers, anti vibration washers
Speed Sensor: Reed sensor or hall sensor options
Mating multipin plugs and cables to solder / crimp into bike wiring (pigtails)
