MA85 : 85mm diameter analogue and digital gauge

£ 190.00 inc VAT | € 235.60 inc VAT | $ 242.24
MA85 85mm diameter analogue and digital gauge
Product Images (Click to enlarge)
MA85 85mm diameter analogue and digital gauge picture 1 MA85 85mm diameter analogue and digital gauge picture 2 MA85 85mm diameter analogue and digital gauge picture 3 MA85 85mm diameter analogue and digital gauge picture 4 MA85 85mm diameter analogue and digital gauge picture 5 MA85 85mm diameter analogue and digital gauge picture 6

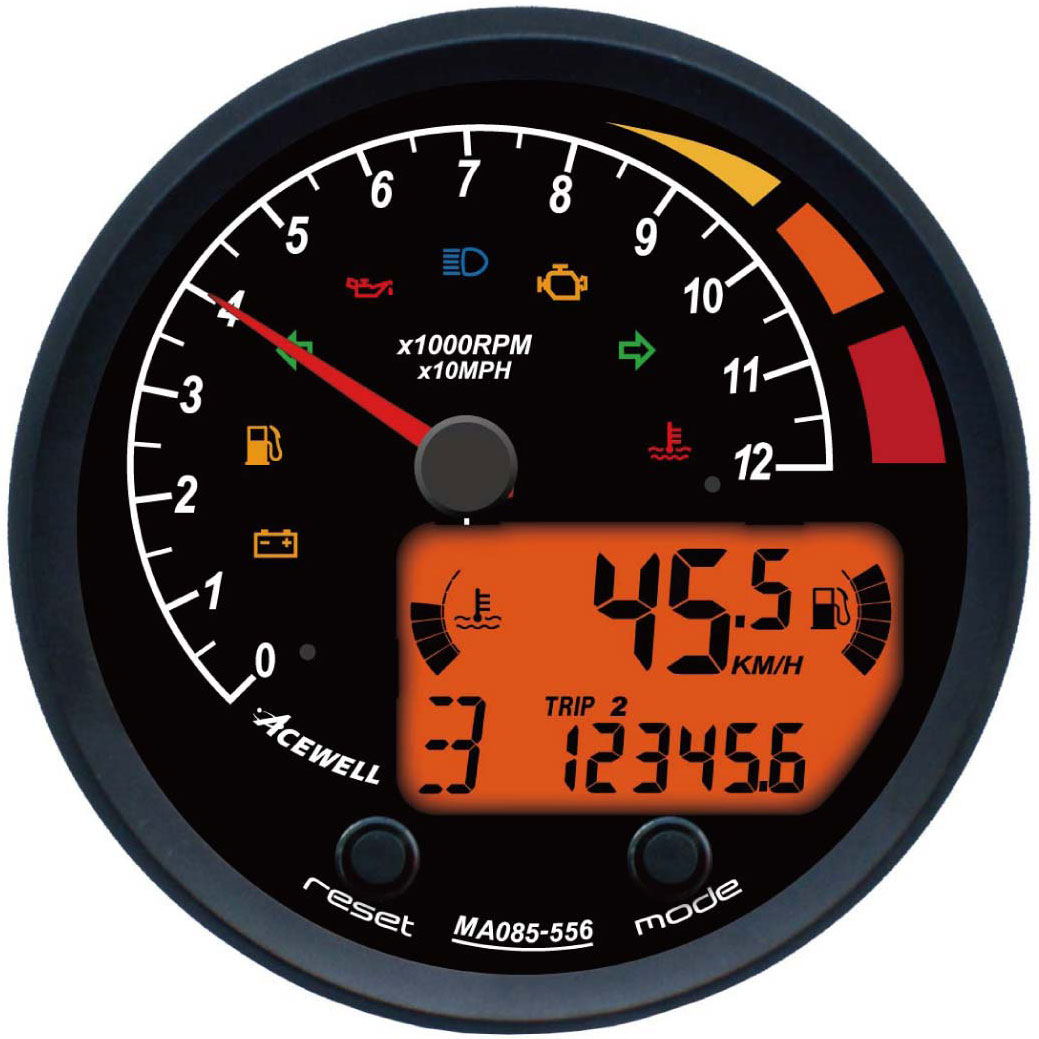

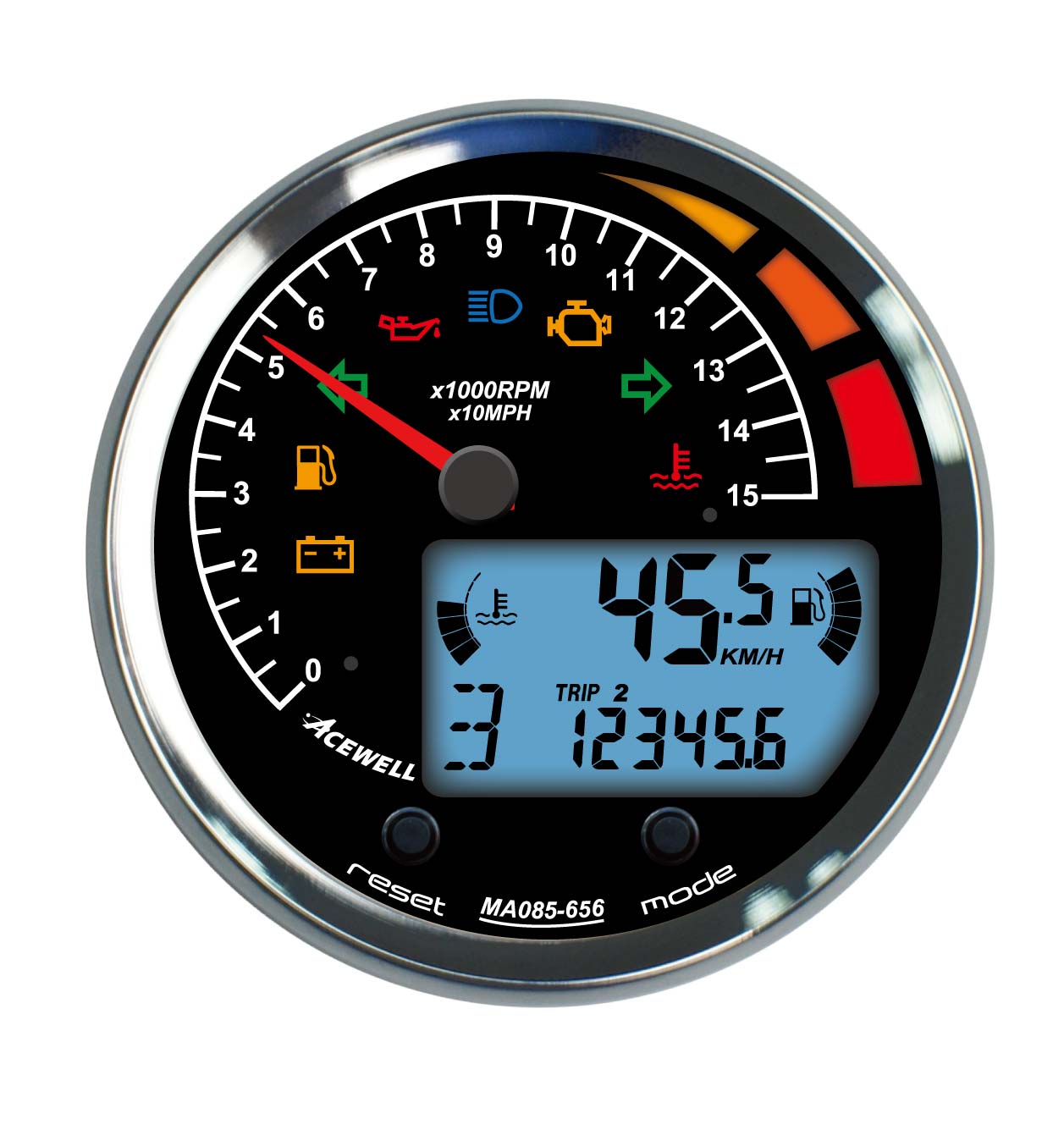

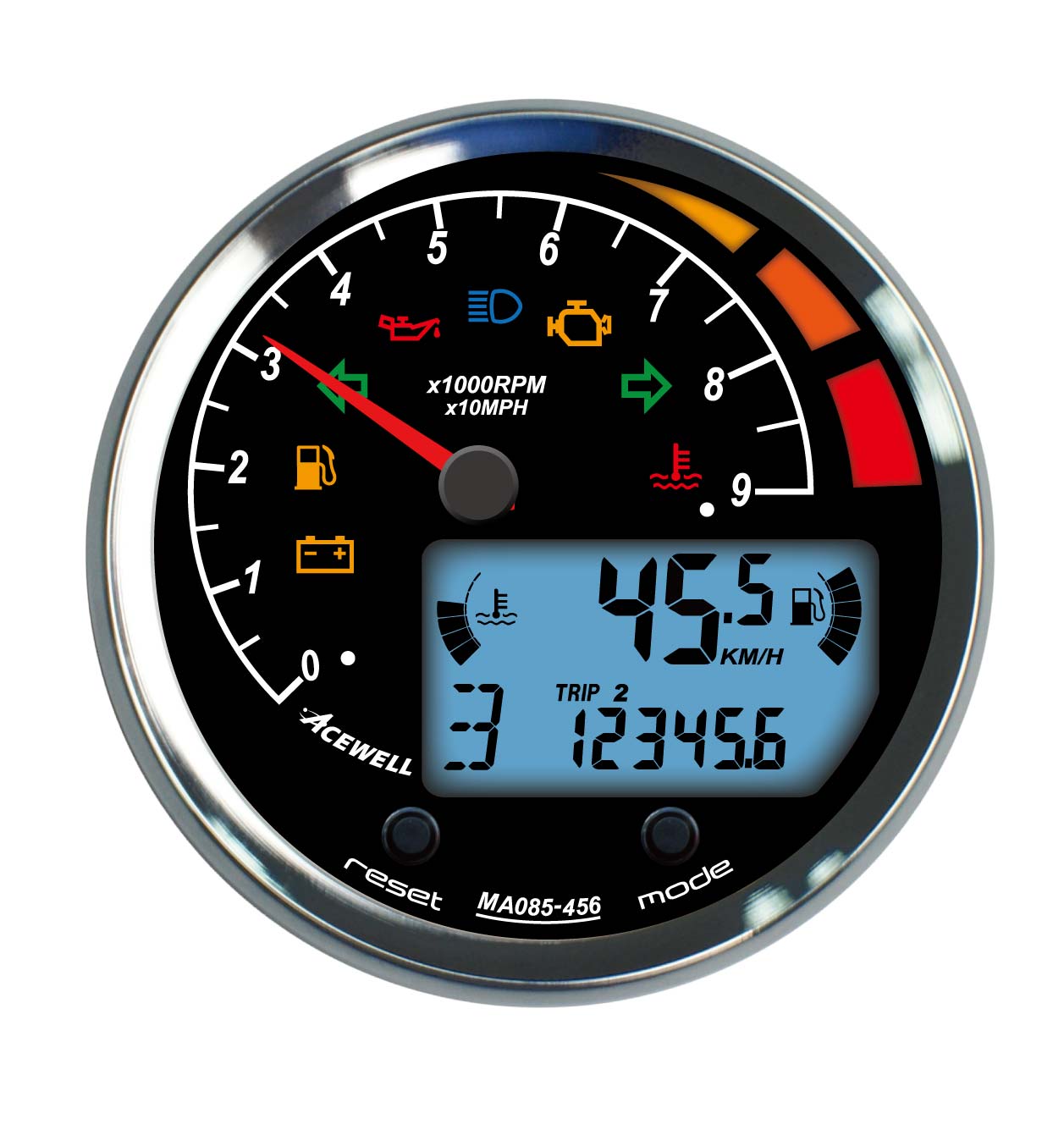

The Acewell MA85 is an 85mm instrument with a needle for RPM or MPH and a digital display for everything else, designed to clamp through a dash panel.

FEATURES:

  • Simultaneously displays tachometer, speedometer, fuel gauge and bar-graph temperature meter, gear indicator as well as one other digital readout.
  • Backlight can be switched with sidelights as per IVA / MSVA / MOT requirements
  • Warning lamps meet requirements of IVA / MSVA / MOT test
  • Needle tachometer available in 4 RPM ranges.
  • Needle can be switched between showing speed and RPM
  • Compatible with both car and motorcycle engined vehicles
  • Speed input can connect to included magnet/reed switch sensor or optional cable drive adaptor or directly to many speed sensors fitted to automotive gearboxes
  • Gear indicator calculates gear by comparing speed and RPM on manual gearboxes, so no additional sensors are required
  • 100% water resistant so can be fitted in beach buggies without worrying about rain damage
  • Includes RPM sensing wire, speed sensor, temperature sensor, and generic wiring harness
  • Voltage warning lamp can be configured for the voltages to come on and off to suit any vehicle
  • Programmable Fuel Gauge which can be set for 10-990 ohms resistance for both full and empty so that it can connect to almost any sender.
  • E-Marked for road vehicle use within Europe
  • 85mm diameter main body x 65mm deep with 95mm diameter bezel and 95mm diameter sleeve

  • Top bezel available in chromed plastic / Black CNC Aluminium / Chromed CNC Aluminium

  • Screw on Sleeve available in black plastic / Black CNC Aluminium / Chromed CNC Aluminium

  • Screw on Sleeve to clamp speedometer through a panel with 85mm hole
  • Needle can show RPM or speed in MPH

  • Upper line of LCD shows speed in MPH only - there is no KM/H function

  • Screw on Sleeve to clamp speedometer through a panel with 85mm hole
    Each kit Includes:

    • 1 x Computer
    • 1 x Speed sensor (and ACE-M magnet for reed switches)
    • 1 x ACE-PT1/8 Temperature sensor 1/8 NPT which can be used for water or oil temp.
    • 1 x Set of cables & fitting instructions.

    COMPATIBLE WITH GEARBOX SPEED SENSORS

    • Features

    features
    • Analogue Needle Speedometer
    • Digial Speed Readout (SPD)
    • Maximum Speed Display (MAX SPD)
    • Average Speed Display (AVG)
    • Odometer (ODO)
    • Trip Meter
    • Clock
    • Resettable Riding Timer (RT)
    • Non-resettable Riding Timer (TT)
    • Engine Hour Meter (HRTT)
    • Maintenance Reminder
    • Temperature Gauge
    • Temperature Sensors
    • Remote Control Option
    • Warning Lamps
    • Warning Symbols Backlit
    • Gear Indicator
    • Digital Rev Counter
    • Programmable Shift Light
    • Needle Rev Counter
    • Voltmeter
    • Bar Chart Fuel Gauge
    • Backlight
    • Battery Charge Warning
    • Waterproof Computer
    • Waterproof Multipin Plugs
    • Plastic Case
    • CNC Case
    • Enter Odometer Reading When New
    • EMI/EMS Tested CE And E-Marked
    • Vibration (8G) And Mechanical Shock (100G) Tested.

    Specifications

    specifications
    FeaturesSpecification
    Model NumberMA85
    Analogue Needle Speedometervarious scales available
    Digial Speed Readout (SPD)0 - 248MPH / 400Km/h
    Maximum Speed Display (MAX SPD)0 - 248MPH / 400Km/h
    Average Speed Display (AVG)0 - 248MPH / 400Km/h
    Max Speed Sensor Input Frequency7KHz (reed sensor / hall sensor / cable drive / electronic gearbox speed sensors)
    Odometer (ODO)0-999,999 km / 0-624,999 miles
    Trip Meter2 trips, 0-999 km / 0-625 miles
    Clock12 / 24 hour clock, also displayed when ignition is off
    Resettable Riding Timer (RT)0 - 99h 59min 59sec
    Non-resettable Riding Timer (TT)0 - 9999h 59min
    Engine Hour Meter (HRTT)0 - 9999h 59min
    Maintenance Reminderdistance or hours
    Temperature Gaugemaximum 160c / 320f
    Temperature Sensors1
    Remote Control Optionsocket fitted to speedometer, remote available as an option
    Warning Lamps7
    Gear Indicator1-8, N
    Digital Rev Counter0-20,000 RPM
    Programmable Shift Light3 stage Green, Amber, Red LEDs
    Needle Rev Countervarious rev ranges available
    Operating Power12v (DC, Negative earth)
    Voltmeter8v-18v
    Bar Chart Fuel Gauge Input Resistanceoff / reserve / 0-1000 config
    BacklightLCD backlight on with ingition, scale backlight switched independently
    Battery Charge WarningUndercharge and overcharge warning
    Connector Plugs090 series
    Plastic Case Dimensions95mm diameter x 56mm (fits through 85mm diameter hole in dash)
    CNC Case Dimensions95mm diameter x 56mm (fits through 85mm diameter hole in dash)
    Casechromed plastic / black plastic / chromed CNC / black CNC upper ring
    black plastic / chromed CNC / black CNC sleeve
    Power Onignition key
    Enter Odometer Reading When Newodometer distance can be altered when the number displayed is less than 30km or 18 miles, once this number is exceeded the distance is locked in memory and cannot be altered
    Compatible Wheel Size1-3999mm

    Included in the kit

    included in the kit
    • Head unit
    • Temperature Sensor: optional
    • Mounting Bracket: ACE-Y Stainless steel bracket
    • Mounting Kit: stainless steel nuts, washers, anti vibration washers
    • Speed Sensor: Reed sensor or hall sensor options
    • Mating multipin plugs and cables to solder / crimp into bike wiring (pigtails)
    • Operating Instructions
    • Wiring diagram
