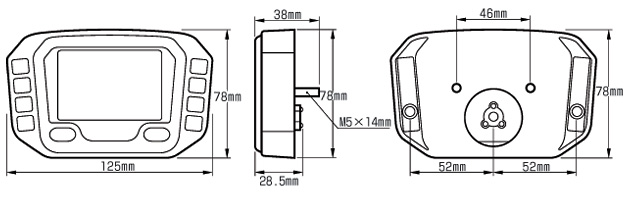

The classic Acewell speedometer: an ACE-3254 digital speedo and rev counter with temperature, fuel and clock, plus a clip-on surround with 6 warning lamps.
It is fitted as original equipment to a number of Gas-Gas, Honda, Jawa and TGB motorcycles and ATVs.
Features
features
Digial Speed Readout (SPD)
Maximum Speed Display (MAX SPD)
Average Speed Display (AVG)
Odometer (ODO)
Trip Meter
Clock
Resettable Riding Timer (RT)
Non-resettable Riding Timer (TT)
Engine Hour Meter (HRTT)
Temperature Gauge
Temperature Sensors
High Temperature Warning Lamp
Warning Lamps
Warning Symbols Backlit
Gear Indicator
Digital Rev Counter
Programmable Shift Light
Bar Chart Rev Counter
Voltmeter
Bar Chart Fuel Gauge
Backlight
Waterproof Computer
Plastic Case
CNC Case
Enter Odometer Reading When New
EMI/EMS Tested CE And E-Marked
Vibration (8G) And Mechanical Shock (100G) Tested.
Warning Lamps
warning lamps
Positive switching Negative Switching Processor controlled LCD symbols
Specifications
specifications Features Specification Model Number ACE-396x Digial Speed Readout (SPD) 0 - 248MPH / 400Km/h Maximum Speed Display (MAX SPD) 0 - 248MPH / 400Km/h Average Speed Display (AVG) 0 - 248MPH / 400Km/h Max Speed Sensor Input Frequency 7KHz (reed sensor / hall sensor / cable drive / electronic gearbox speed sensors) Odometer (ODO) 0-999,999 km / 0-624,999 miles Trip Meter 2 trips, 0-999 km / 0-625 miles Clock 12 / 24 hour clock, also displayed when ignition is off Resettable Riding Timer (RT) 0 - 99h 59min 59sec Non-resettable Riding Timer (TT) 0 - 9999h 59min Engine Hour Meter (HRTT) 0 - 9999h 59min Temperature Gauge maximum 160c / 320f Temperature Sensors 1 Warning Lamps up to 10 depending on exact model Gear Indicator 1-8, N, R Digital Rev Counter 0-20,000 RPM Bar Chart Rev Counter 0-8000 / 0-16,000 RPM Operating Power 12v (DC, Negative earth) Voltmeter 8v-18v Bar Chart Fuel Gauge Input Resistance off or +/- 100 / 250 / 510 ohm Backlight White backlight Connector Plugs 110 series Plastic Case Dimensions 130 x 78 x 28mm CNC Case Dimensions version AB or CP: 130 x 78 x 28mm Case black / silver & grey plastic with black surround or black / chrome CNC case Power On ignition key Enter Odometer Reading When New odometer distance can be altered when the number displayed is less than 30km or 18 miles, once this number is exceeded the distance is locked in memory and cannot be altered Compatible Wheel Size 1-3999mm
Included in the kit
included in the kit Head unit
Temperature Sensor: optional
Mounting Bracket: ACE-Y Stainless steel bracket
Mounting Kit: stainless steel nuts, washers, anti vibration washers
Speed Sensor: Reed sensor or hall sensor options
Mating multipin plugs and cables to solder / crimp into bike wiring (pigtails)
Operating Instructions
Wiring diagram
