A simple digital rev counter that also shows temperature and fuel level.
Made for enduro, motocross, trials and track bikes.
Warning lamps for gear shift and high temperature
Features
features
Clock
Temperature Gauge
Temperature Sensors
High Temperature Warning Lamp
Warning Lamps
Digital Rev Counter
Programmable Shift Light
Bar Chart Rev Counter
Voltmeter
Bar Chart Fuel Gauge
Backlight
Waterproof Computer
Plastic Case
EMI/EMS Tested CE And E-Marked
Vibration (8G) And Mechanical Shock (100G) Tested.
Warning Lamps
warning lamps
Processor controlled LCD symbols
Specifications

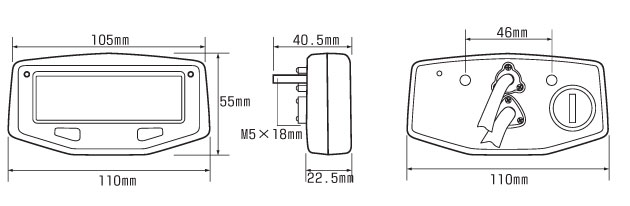

specifications Features Specification Model Number ACE-1100 Clock 12 / 24 hour clock, also displayed when ignition is off Temperature Gauge maximum 160c / 320f Temperature Sensors 1 Warning Lamps 2 Digital Rev Counter 0-20,000 RPM Bar Chart Rev Counter 0-10,000 / 0-20,000 RPM Operating Power 12v or internal battery Voltmeter 8v-18v Bar Chart Fuel Gauge Input Resistance off or +/- 100 / 250 / 510 ohm Backlight Amber backlight Connector Plugs 110 series Plastic Case Dimensions 110 x 55 x 21mm Case black / silver plastic Power On RPM detected (on internal battery) / ignition key
Included in the kit
included in the kit Head unit
Temperature Sensor: optional
Mounting Bracket: ACE-Y Stainless steel bracket
Mounting Kit: stainless steel nuts, washers, anti vibration washers
Speed Sensor: None
Mating multipin plugs and cables to solder / crimp into bike wiring (pigtails)
Operating Instructions
Wiring diagram
