ACE-278 : Digital display - Speedometer, Warning lamps, RPM, Temperature

£ 139.99 inc VAT | € 173.59 inc VAT | $ 178.49
ACE-278 Digital display - Speedometer, Warning lamps, RPM, Temperature
Product Images (Click to enlarge)
ACE-278 Digital display - Speedometer, Warning lamps, RPM, Temperature picture 1 ACE-278 Digital display - Speedometer, Warning lamps, RPM, Temperature picture 2

A small, tough, waterproof multifunction computer for road-legal motocross, enduro and supermoto bikes, quads and streetfighters.

Compared with the ACE-258 it adds temperature and RPM readouts. It is almost identical to the ACE-268 but switches on with the ignition key rather than by detecting engine revs.

Modes: MPH, KM/H, ODO, TRIP, HRT, HRTT, RT, TT, CLOCK, FUEL LEVEL, MAX SPEED, TEMP, MAX TEMP, RPM, MAX RPM (RPM for Shift light)

Features

features
  • Digial Speed Readout (SPD)
  • Maximum Speed Display (MAX SPD)
  • Average Speed Display (AVG)
  • Odometer (ODO)
  • Trip Meter
  • Clock
  • Resettable Riding Timer (RT)
  • Non-resettable Riding Timer (TT)
  • Engine Hour Meter (HRTT)
  • Temperature Gauge
  • Temperature Sensors
  • High Temperature Warning Lamp
  • Warning Lamps
  • Warning Symbols Backlit
  • Digital Rev Counter
  • Programmable Shift Light
  • Bar Chart Fuel Gauge
  • Backlight
  • Waterproof Computer
  • Waterproof Multipin Plugs
  • Plastic Case
  • Enter Odometer Reading When New
  • EMI/EMS Tested CE And E-Marked
  • Vibration (8G) And Mechanical Shock (100G) Tested.

Warning Lamps

warning lamps
Positive switchingNegative SwitchingProcessor controlledLCD symbols
Left indicator warning lampHigh beam warning lampRight indicator warning lamp Neutral warning lamp Temperature warning lampRPM shift light warning lamp Fuel warning lamp

Specifications

specifications
FeaturesSpecification
Model NumberACE-278
Digial Speed Readout (SPD)0 - 248MPH / 400Km/h
Maximum Speed Display (MAX SPD)0 - 248MPH / 400Km/h
Average Speed Display (AVG)0 - 248MPH / 400Km/h
Max Speed Sensor Input Frequency7KHz (reed sensor / hall sensor / cable drive / electronic gearbox speed sensors)
Odometer (ODO)0-999,999 km / 0-624,999 miles
Trip Meter2 trips, 0-999 km / 0-625 miles
Clock12 / 24 hour clock, also displayed when ignition is off
Resettable Riding Timer (RT)0 - 99h 59min 59sec
Non-resettable Riding Timer (TT)0 - 9999h 59min
Engine Hour Meter (HRTT)0 - 9999h 59min
Temperature Gaugemaximum 160c / 320f
Temperature Sensors1
Warning Lamps6
Digital Rev Counter0-20,000 RPM
Operating Power12v (DC, Negative earth)
Bar Chart Fuel Gauge Input Resistanceoff / reserve or +/- 100 / 250 / 510 ohm
BacklightWhite Backlight and power switched independently
Connector Plugs090 series

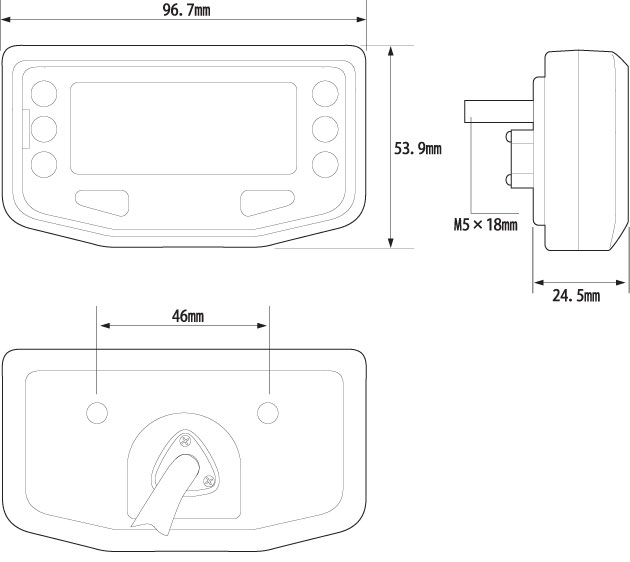

Plastic Case Dimensions96 x 53 x 24mm
Caseblack / silver plastic
Power Onignition key
Enter Odometer Reading When Newodometer distance can be altered when the number displayed is less than 30km or 18 miles, once this number is exceeded the distance is locked in memory and cannot be altered
Compatible Wheel Size1-3999mm

Included in the kit

included in the kit
  • Head unit
  • Temperature Sensor: optional
  • Mounting Bracket: ACE-Y Stainless steel bracket
  • Mounting Kit: stainless steel nuts, washers, anti vibration washers
  • Speed Sensor: Reed sensor or hall sensor options.
  • Mating multipin plugs and cables to solder / crimp into bike wiring (pigtails)
  • Operating Instructions
  • Wiring diagram
Product Images
(Click to enlarge)
CategoryAcewell Speedometers
Sub-CategoryACE- 2xx
Quantity in Stock20
